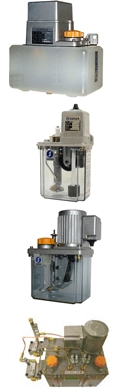

Showa Lubrication Pumps

MY6 Series SMA Series SSMA Series SMD Series YMAS Series YMB Series YMAS-36YN (100/110VAC Sinlge Phase) (Dual Pump w/ 2 LF0150N Line Filters) Automatic Gear Pumps (SLR Systems) (used with control/flow units) MLA, MLC and MLD Series (with Reservoirs, Low Level switches and Pressure Gauges) MLA006, MLA015, MLA03, MLA05 and MLA05-5 Series MLA10, MLA15, MLA30, MLA50, MLA70 and MLA100 Series MLC051 and MLC101 Series MLD052, MLD102, MLD302, MLD304, MLD503, MLD505, MLD704, MLD705, MLD1004 and MLD1005 Series MV1 and MV3 Series Pneumatic/Air Operated Pumps HP4W Series HP8W Series Gear Pumps (PDI Systems) (used with piston distributors) LCA3 Series LCA4 Series LAW-6 and LAW-8 Series (Manual Pump) LCB1 Series LCB2 Series LCB3 Series LCB4 Series (2 Liter Reservoir) LCB4 Series (4 Liter Plastic Blow Reservoir) LCB4 Series (6 Liter Metal Reservoir) LCB4 Series (6 Liter Metal Reservoir and LF01 Line Filter) LCB5 Series MLA*W and MLB*W Series (w/ 6 Liter Metal Reservoir MLA015W, MLA03W, MLA03WT and MLA05W Series MLA015W-3553R, 100V MLB015W and MLB03W Series MLB03W-4952R2, 200V MLB015W2, MLB015W3, and MLB03W2 Series Manual Grease Pumps SHGD61 and SHGD121 Series SHGD6 and SHGD12 Series Automatic Grease Pumps MHG71 and MHG72 Series MHG41 and MHG42 Series ShowaMist Coolant Pump and Accessories ShowaMist FP2 (Spraymist) ShowaMist FP3 (Spraymist) Flexible Extension Jet, Rigid Extension Jet, Dual Hose Assembly, Jet Tip, Stub Jet, Magnetic Jet Holder Dual Tee Blocks Cam Operated Pump WB2 Series WBR2 Series Manual Piston Pumps (SLR Systems) EA-3 Series EA-8 Series HLA-7R and HLA7L Series "FA" Series "A" Series "BM" Series LD6 and LD8 Series LA3 Series LA8D Series Air / Oil Lubrication MOA DM1, DM2, DM3, DM4, DM5 Piston Distributors DPB-11, DPB-12, DPB-13, DP-B15, DPB-16, DPB-18, DPB-110 DPB21, DPB22, DPB23, DPB25, DPB26, DPB28, DPB210 DPB-31, DPB-32, DPB-33 DPB-22L, DPB-23L, DPB-25L, DPB-26L DPB-28L, DPB-210L (Visual Indicator) DPF-31, DPF-32, DPF-33 DSA-2, DSA-4, DSA-6, DSA-8 DSA-2L, DSA-4L, DSA-6L, DSA-8L (Indicator Pin) DSB-3, DSB-5, DSB-7 DSB-3L, DSB-5L, DSB-7L DS2Z, DS3Z, DS5Z, DS8Z (Visual Indicator) Adjustable Feeders VA Series VB Series Grease Distributors SG23, SG24, SG25, SG26 SG604, SG606, SG608, SG610, SG612 Flow Proper Units (Meter Units / Orifices) PSS-02, PSS-00, PSS-0, PSS-1, PSS-2, PSS-3, PSS-4, PSS-5 PST-00, PST-0, PST-1, PST-2, PST-3, PST-4, PST-5 PTS-00, PTS-0, PTS-1, PTS-2, PTS-3, PTS-4, PTS-5 PTT-00, PTT-0, PTT-1, PTT-2, PTT-3, PTT-4, PTT-5 KPB-00, KPB-0, KPB-1, KPB-2, KPB-3, KPB-4, KPB-5 KPF-00, KPF-0, KPF-1, KPF-2, KPF-3, KPF-4, KPF-5 Continuous Units (Control Units / Grease System Compatible) CSS-1, CSS-2, CSS-3, CSS-4, CSS-5 CST-1, CST-2, CST-3, CST-4, CST-5 CTT-1, CTT-2, CTT-3, CTT-4, CTT-5 Timers YD Timer YM Timer YX Timer YT Timer Filters and Replacement Filter Elements LineFilter LF04 and Replacement Elements Line Filter LFY & Replacement Element F/1901 Line Filter LF01 & Replacement Element F/1401 Line Filter LF0151E and Replacement Element F/1401-2 Suction Filters SFS01, SFS02 SFM01, SFM02 Filter Baskets F/2101 (3-3467) F/2201 (3-3289) F/2301 (3-4195) F/2401 (3-6488/6489) F/2501 (3-4078) Sight Glass Pressure Gauges POL-L, POL-LL, POL-LT, POL-M, POL-S PGF, PGL, PGLS, PGLF, GL Pressure Switches GFB8 and GFB12 SPS-8T Oil Level Switches OLV01, OLV02 OLV2B2 Terminal Box SW101N, SW102N, SW103N, SW104N Junctions and Junction Bars DA Series DB Series JD, JHD, PK, PKD, PKF and PJD Compression Fittings, Hoses, Elbows, Adapters, Check Valves & Connectors Flexible Hoses (Spring guarded) Tubing Compression Fittings Adapters, Connectors, Check Valves, Reducers and Swivels (Metric Threads) Swivel Joints SJO-101 SJL-101, SJL-121, SJS-101, SJS-121 Motors Reservoirs (1 to 60 liters) Motors Reservoir / Tanks / Containers

Showa SMA Piston Pump The Showa SMA is one of the most versatile and popular automatic cyclic units in the world. It is used on all types of industrial machines and equipment. This pump comes in a wide range of outputs and cycle times, which allows it to handle vitually any application. The SMA has an adjustable output which is accomplished by loosening the set screw and turning the adjustment screw up or down the calibrated rod. While plastic reservoirs are standard, aluminum is available for tough service requirements. The SMA is a leader today in both high performance and low cost- this accounts for its popularity. An optional low level switch is available for added security. If you are looking for a pump with a smaller reservoir, try the Showa SSMA. The Showa SMD Lube pump has most of the same specs of the SMA but offers a protection cover and a different reservoir. If you require a Heavy-Duty Piston pump, look at the Showa YMAS. Notice: Suction Filter should be replaced every 6 months or less. Filter Part Number: F/1001 Model Number Cycle Time (min) Output (cc/cy) "adjustable" Output (cc/hour) Outlet Thread Operating Pressure MPa (kgf/cm2) Pump Dimensions (mm) Min Max Length Depth Height SMA1-5 5 0.2~1 2.40 12 M8x1 0.2 (2) 190 117 216 SMA1-10 10 0.2~1 1.20 6 M8x1 0.2 (2) 190 117 216 SMA1-15 15 0.2~1 0.80 4 M8x1 0.2 (2) 190 117 216 SMA1-30 30 0.2~1 0.40 2 M8x1 0.2 (2) 190 117 216 SMA1-60 60 0.2~1 0.20 1 M8x1 0.2 (2) 190 117 216 SMA1-120 120 0.2~1 0.10 0.50 M8x1 0.2 (2) 190 117 216 SMA3-5 5 1~3 12 36 M8x1 0.2 (2) 190 117 216 SMA3-10 10 1~3 6 18 M8x1 0.2 (2) 190 117 216 SMA3-15 15 1~3 4 12 M8x1 0.2 (2) 190 117 216 SMA3-30 30 1~3 2 6 M8x1 0.2 (2) 190 117 216 SMA3-60 60 1~3 1 3 M8x1 0.2 (2) 190 117 216 SMA3-120 120 1~3 0.50 1 M8x1 0.2 (2) 190 117 216 SMA6-5 5 3~6 36 72 M8x1 0.2 (2) 190 117 216 SMA6-10 10 3~6 18 36 M8x1 0.2 (2) 190 117 216 SMA6-15 15 3~6 12 24 M8x1 0.2 (2) 190 117 216 SMA6-30 30 3~6 6 12 M8x1 0.2 (2) 190 117 216 SMA6-60 60 3~6 3 6 M8x1 0.2 (2) 190 117 216 SMA6-120 120 3~6 1.50 3 M8x1 0.2 (2) 190 117 216

Showa SSMA Piston Pump The SSMA is the most economical of the automatic cyclic pumps. Because of its compactness, it allows automatic centralized lubrication where space is at a premuim. This makes it especially well suited to small machines which previously required manual lubricating. The clear plastic reservoir allows easy viewing of the lubricant level. A three holed bracket is provided for convenient mounting. A self-closing lid makes refilling simple. An optional float switch is available. If you require a more Heavy-Duty pump take a look at the Showa SMA, Showa SMD, or the Showa YMAS. Notice: Suction Filter should be replaced every 6 months or less. Filter Part Number: F/1001 An optional Low Level Switch is available for all models. Pump Model Number Cycle Time (min) Output (cc/cy) Output (cc/hour) Outlet Thread Operating Pressure MPa (kgf/cm2) Pump Dimensions (mm) Min Max Length Depth Height SSMA2-5 5 1~2 12 24 M8x1 0.3 (3) 134 91.5 190.5 SSMA2-10 10 1~2 6 12 M8x1 0.3 (3) 134 91.5 190.5 SSMA2-15 15 1~2 4 8 M8x1 0.3 (3) 134 91.5 190.5 SSMA2-30 30 1~2 2 4 M8x1 0.3 (3) 134 91.5 190.5 SSMA2-60 60 1~2 1 2 M8x1 0.3 (3) 134 91.5 190.5 SSMA2-120 120 1~2 0.50 1 M8x1 0.3 (3) 134 91.5 190.5 SSMA3-5 5 3 24 36 M8x1 0.3 (3) 134 91.5 190.5 SSMA3-10 10 3 12 18 M8x1 0.3 (3) 134 91.5 190.5 SSMA3-15 15 3 8 12 M8x1 0.3 (3) 134 91.5 190.5 SSMA3-30 30 3 4 6 M8x1 0.3 (3) 134 91.5 190.5 SSMA3-60 60 3 2 3 M8x1 0.3 (3) 134 91.5 190.5 SSMA3-120 120 3 1 1.50 M8x1 0.3 (3) 134 91.5 190.5
