FUJI ELECTRIC MOTOR, FUJI BLOWER, FUJI PUMP, FUJI BRAKE

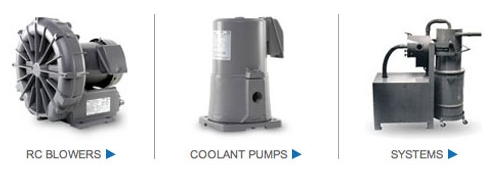

Fuji Induction Motors Three-phase Standard Motors Fuji High-efficiency Motors Fuji Outdoor Motors Brake Motors, Fuji Geared Motors Fuji Brake Motors Fuji Geared Motors Fuji Blowers, Fuji Fans Fuji Ring Blowers Fuji Turbo Blowers Fuji Outer rotor Fans Coolant Pumps Low Pressure Fuji Coolant Pumps High Pressure ? Coolant Pumps DC Brushless Motors DC Brushless Motors New Products Discontinued Products

Torque is kept constant during inverter operation to improve resistance to the environment and heat. This is an RoHS-compliant and environment-friendly product in its standard configuration. Top of Page Standard series Degree of protection Output range Power supply Item in-stock Open drip-proof (IP22) 0.4-200kW 37kW or less 200/200-220 V, 50/60Hz 45kW or more 200-400/ 200-400 V, 220-440 50/60Hz - Totally-enclosed fan-cooled (IP44) 0.1-200kW 37kW or less 200/200-220V, 50/60Hz 45kW or more 200-400 / 200-400 V, 220-440 50/60 Hz Horizontal-mount Foot-mounted (IMB3) 2-pole 0.2-55kW 4-pole 0.1-110kW 6-pole 0.2-75kW Vertical-mount Flange Mounted (IMV1) 2-pole 0.2-15kW 4-pole 0.2-37kW 6-pole 0.2-11kW 400V series Degree of protection Output range Power supply Item in-stock Open drip-proof (IP22) 0.75-37kW 380-400-415 /400-440-460V, 50/60Hz - Totally-enclosed fan-cooled (IP44) 0.2-37kW 380-400-415 /400-440-460V, 50/60Hz 2-pole only 400-415 /400-440-460V, 50/60Hz Horizontal-mount Foot-mounted (IMB3) 2-pole 0.2-37kW 4-pole 0.2-37kW 6-pole 0.2-37kW Vertical-mount Flange-mounted (IMV1) 4-pole 0.4-7.5kW Top of Page Degree of protection Open drip-proof (IP22) Open (IP20) Totally-enclosed fan-cooled (IP44) Totally-enclosed self-cooled (IP44) *1 Type Sheet- steel frame MRH MLH Cast-iron frame MRA MLA Aluminum frame - MLC Output range 0.4-200kW 0.1-200kW Frame size 80M-280M 63M-315M Rated voltage, rated frequency Item in-stock 37kW or less:200/ 200 220 V or 380 400 415 / 400 440 460 V, 50/60Hz*2 45kW or more:200-400/ 200-400 220-440 V, 50/60Hz(12 terminal leads) Made-to-order 200, 220, 350, 380, 400, 440, 500V, and other voltages up to 600V Output rating S1 (Continuous) Starting method 3.7kW or less: Direct-on-line (full voltage) starting 5.5kW or more: Star-delta starting Thermal class 112M or less: E 132S-180M: B 180L or more: F Rotational direction Counterclockwise viewed from Drive End (CCW) Environmental condition Ambient temperature -20C to +40C Humidity 85% or less 100% or less Altitude 1000m or less Atmosphere Shall be free from corrosive gases, explosive gases, and vapor. Terminal box Location (Horizontal -mount) 200M or less : Left side viewed from Drive End 225S or more : Upper side 225S or less : Left side viewed from Drive End 250S or more : Upper side Cable entry (Horizontal -mount) 200M or less : Lower side 225S or more : Left side viewed from Drive End 225S or less : Lower side 250S to 280M : Left side viewed from Drive End Variable at 90 intervals TEFC type's frame 63M, 71M (0.1kW excluded): Upper-side and Lower side Material Sheet-steel (Plastic for TEFC 63M, 71M) Lead wire Connection 63M to 132M: Terminal board connection (Screw bolt terminal connection in terminal box) 160M or more: Lug terminal connection (Lead wire connection with crimp terminal in terminal box) Number *3 3.7kW or less: Three 5.5-37kW: Six 45, 55kW: Twelve Finished color Munsell N5 (Gray) Standards JIS, JEC, JEM

An ideal blower section shape and high-performance silencer greatly reduce operating noise. Forward inclined impeller system enables small size, light weight and high blower pressure. VFZ Serie Unpleasant high-frequency sounds are reduced. European RoHS directives (CE marking) are supported in the standard configuration. Suction totally-enclosed shutoff operation is supported. [50 & 60 type] * Note) When using the product in suction totally-enclosed shutoff operation, be sure to remove the emblem from the main body before installation. The international protection class is IP54 (motor section). Two piping system connection menu is provided (for hose and for phase flange). [10 to 60 type] Size and weight are greatly reduced. [70 to 90 type] Application Examples Powder transport, absorption, dust collection, floating, air tension, ventilation/cooling, air bubble applications (bubble baths), liquid bottling, atomization. etc. Top of Page Series Type Voltage (V) Frequency (Hz) Max. delivery airflow pressure (kPa) Max. delivery airflow rate (m3/min) 50Hz 60Hz 50Hz 60Hz Single-phase standard type VFZ081PN to 401PN 100/ 100 110 50/60 3.73 -9.81 4.85 -13.2 0.47 -2.05 0.56 -2.45 Three-phase standard type For horse flange VFZ081A to 901A 200/ 200 220 3.73 -25.5 4.85 -31.4 0.47 -7.5 0.56 -10.8 For companion flange VFZ101AF to 601AF 200/ 200 220 5.15 -21.1 6.37 -27.5 0.58 -4.2 0.69 -5.5 Three-phase low-noise type VFZ101AN to 901AN 200/ 200 220 5.15 -25.5 6.37 -31.4 0.58 -7.5 0.69 -10.8 Variable voltage type VFZ081A-4Z to 801A-4Z 380 / 400 440 400 415 3.73 -25.5 4.85 -33.3 0.47 -6.3 0.56 -8.5
